Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: WL
  • Model Number: WLL0.9-3
  • Lift Mechanism: Articulated Lift
  • Lift Drive / Actuation: Hydraulic
  • Power: 2.0kw, Hydraulic , Diesel Power
  • Rated Loading Capacity: 900kg
  • Min. Lifting Height: 0.25m
  • Max. Lifting Height: 3.81m
  • Table Size: 1500*2400mm, 1500*2400mm
  • Overall Dimensions: **
  • Weight: 2200kg
  • Certification: CE Certificate
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max Lifting Height: 3.81m
  • Load Capacity: 900kg
  • Packaging: Wooden Box
  • Terms: 50% TT in advance ,50% TT before Shipment

Packaging & Delivery

Packaging Details Wooden Box Packaging .Fitting for the International Delivery .
Delivery Time Shipped in 15 days after payment
Product Description





Introduction

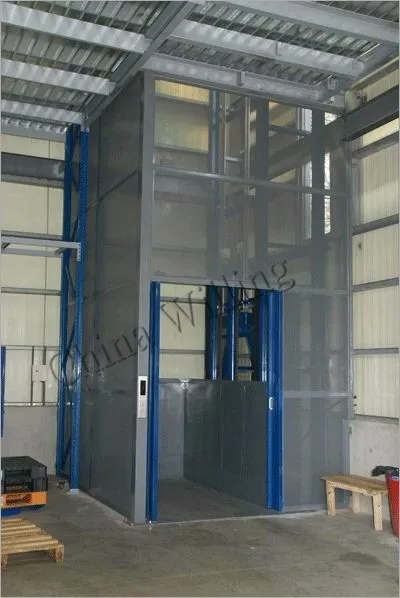

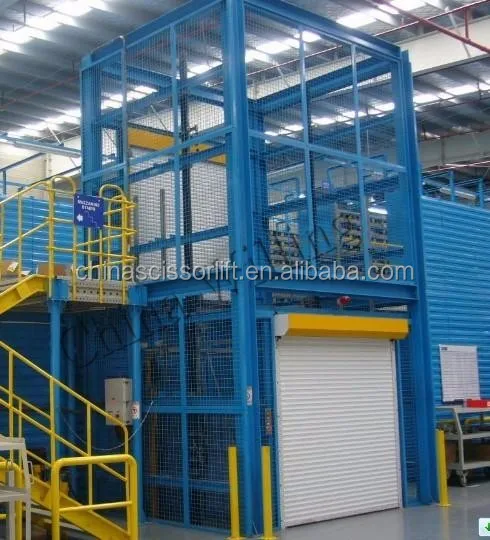

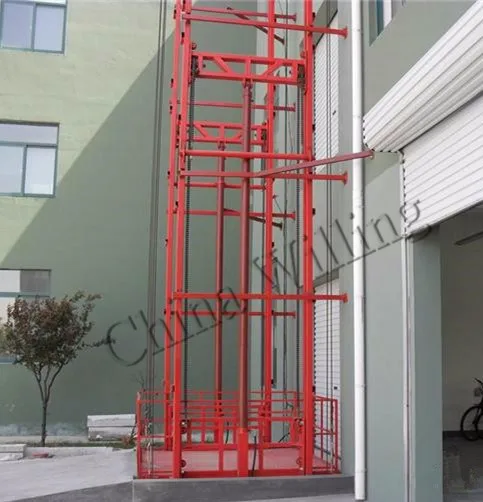

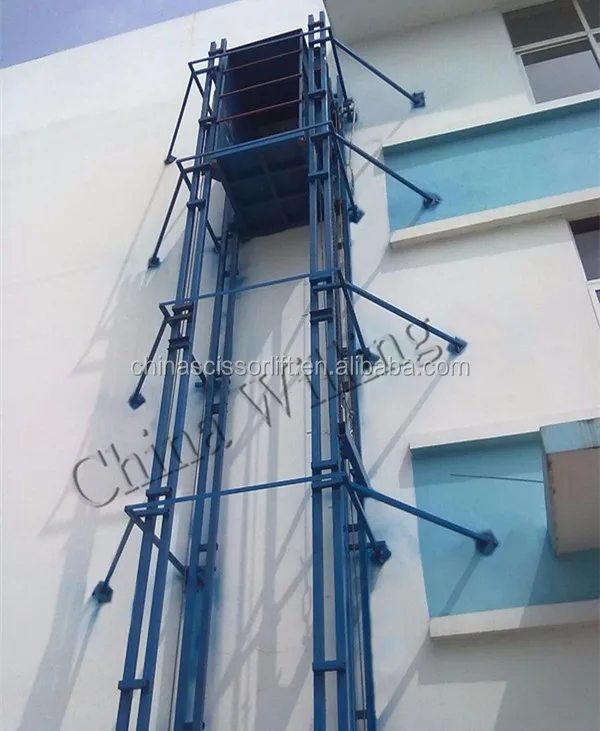

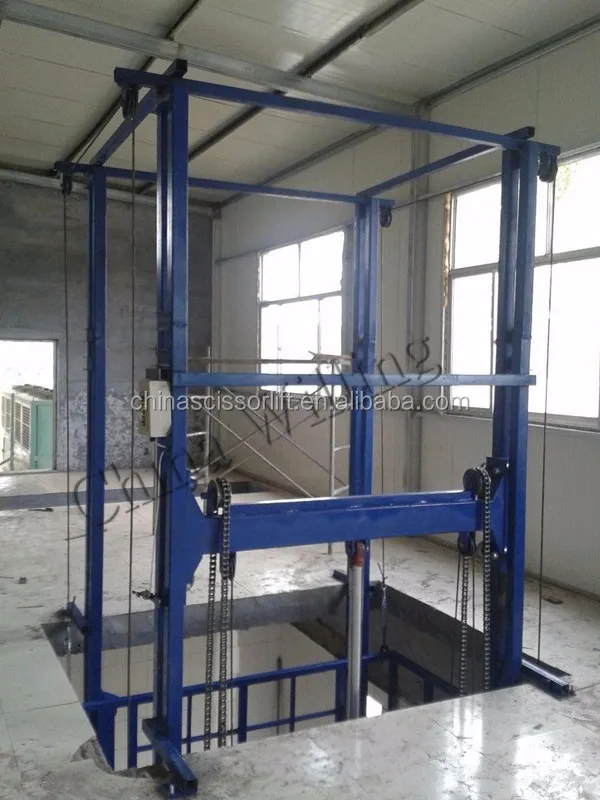

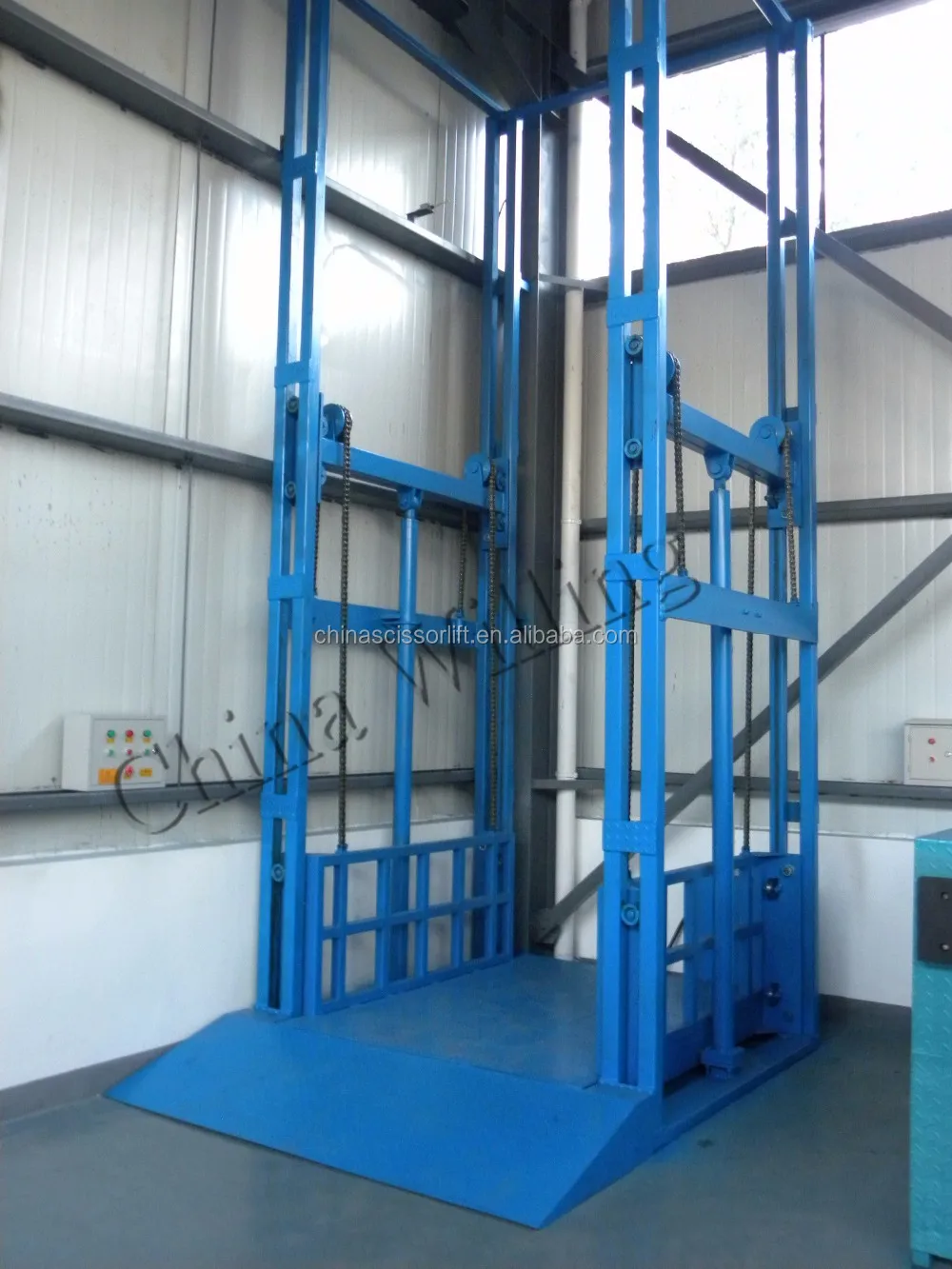

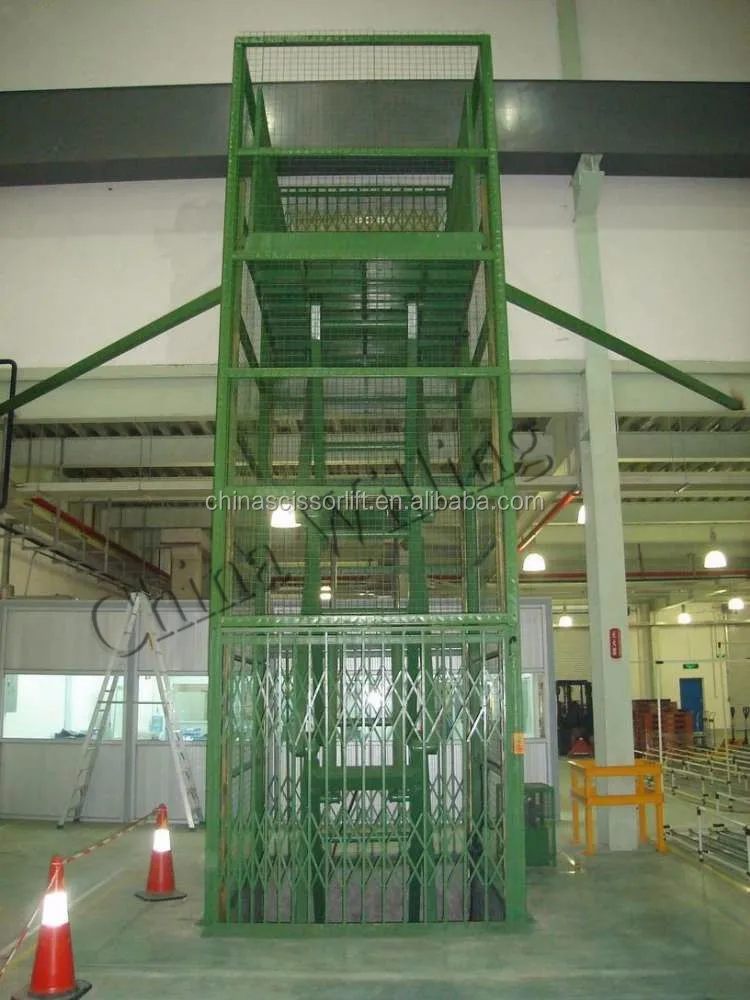

The product driven by the electric and hydraulic system, lifting up and down along the guide rail. Equipped with single side or double sides hydraulic cylinder to keep the machinery work smoothly and steadily.



It is installed in the pit or the ground floor to convey the goods from one working lever to another.The

control panels are avaliable at the designated floors and on the lift platforms, with up down stop button.



The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.




Performance characteristics


1. used in automobile up to high floor, also can do automobile maintenance;



2. double insurance safety, ensure person equipment safety;



3. resistance capacity is good, high tensile strength;



4. each rotary axis parts equipped with wear-resisting components, ensure the equipment running flexible;



5. suitable for all kinds of car and different height use length.


Advantages

Rugged, carrying capacity, stable lifting, easy to operate, economical and convenient transport of goods. As the lift platform lowest height is 150-160mm, ideal for industrial applications can not dig the pit, but without the upper suspension points.

Safety precaution


1. It is equipped with antiskid plate to prevent slipping, enough safe when working.



2. It is equipped with the guardrail to guarantee the safety.



3. It has hydraulic overload protective device to ensure that the equipment will stop work when the load beyond the rated load capacity.



4. It is equipped with singe control solenoid valves to prevent the platform drop if power failure, and you can open the manual deopped valve to lower the platform to the home position.





Specifications



Our Services

1.All the machines will be full tested before shipment

2. The total machine guarantee is 12 months

3. 24 Hours technical support, email, telephone or video online

4. User-friendly english manual for machine using and maintaining

5. Several sets wearing parts will be free for you.

FAQ

Delivery Time:        (From 1 week to 1 month after we receive the order)

Payments:              (T/T and L/C, other kinds, pls contact with us)

MOQ:                     (1 set)

Trade term:             (FOB to your nearest seaport)

Application field:    (Construction, shipyard, industrial, airport, municipal garden or others)



Company Information



Jinan Willing International Trade co.,Ltd is an enterprise specialized in hydraulic lift platform design, innovation, production and sales. Our main products are lift platforms, hydraulic lifts, elevators and other aerial work platforms. Various needs from different fields can be meet here, which earn us a good reputation and a lot of faithful clients around the world.
